Shunts - Low-Cost Series



Our low-cost series offers a cheap alternative for the standard applications that do not require DIN regulations (for example welding machines and battery chargers. Our low-cost series assure compliance with the highest standards at the lowest possible cost.

Technical specification

Voltage Drop Nominal Current
60mV 200A 250A 300A 400A 500A 600A 700A 800A 1000A
100mV  200A 250A 300A 400A 500A 600A 700A 800A 1000A

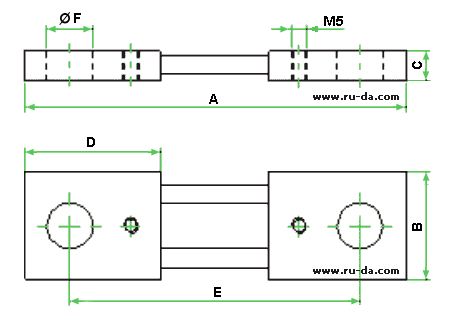

Dimensions

Voltage Drop [mV] Nominal Current [A] A B C D E F
60 200 100 30 8 33 80 8.5
60 250 100 30 8 35 80 8.5
60 300 145 30 8 55 105 12.5
60 400 - 500 - 600 145 40 12 55 105 16.5
60 700 - 800 145 45 12 55 105 16.5
60 1000 145 60 12 55 105 16.5
100 200 124 30 8 33 105 8.5
100 250 120 30 8 35 100 8.5
100 300 168 30 8 55 128 12.5
100 400 - 500 - 600 168 40 12 55 128 16.5
100 700 - 800 168 45 12 55 128 16.5
100 1000 168 60 12 55 128 16.5

 Check availability!
Click on "Warehouse"!
